All-in-one condensate recovery heat tracing station

Pressure rating: 150Lb/300Lb

Working medium: steam, condensate

Body Material: A105

Branch type: seamless steel pipe / prefabricated insulated pipe / no branch pipe

Number of branches: 4 /6 /8 /10 /12 /14

Allowable temperature/pressure: 425°C/2.8MPa

Connection: main pipe DN40 flange, socket connection, branch pipe DN15/DN20 thread, socket welding, flange, ferrule.

Download All-in-one condensate recovery heat tracing station
Features

Modular components including tube bundle valves, integrated multi?channel valves, and universal connection steam traps are assembled into a compact, standardized system: the HSJ Series Integrated Condensate Collection Bundle.

1.Reduces on?site assembly time.

2.Lowers engineering costs and shortens procurement and design cycles.

3.Offers flexible and convenient design and installation.

4.Ensures long service life.

5.Facilitates easy replacement and maintenance.

6.Comes standard with WS Series universal connection thermodynamic (disc?type) forged steel traps; other trap types (such as WTB Series bimetallic traps or WES Series inverted bucket traps) are available upon request.

7.Custom tube bundle layouts can be designed to meet specific on?site piping requirements.

Application: Suitable for centralized condensate collection and transfer in industrial steam heating systems across petroleum, chemical, metallurgical, textile, papermaking, printing and dyeing, pharmaceutical, power generation, and related industries.

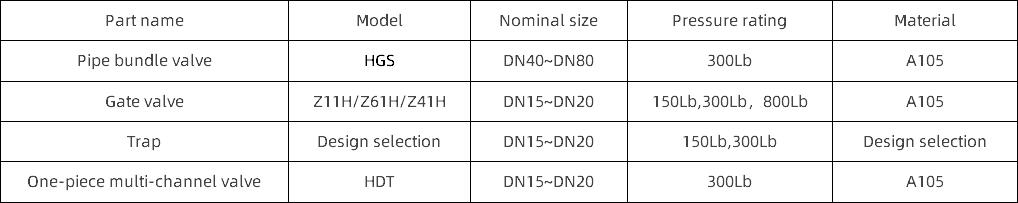

Components & Materials:

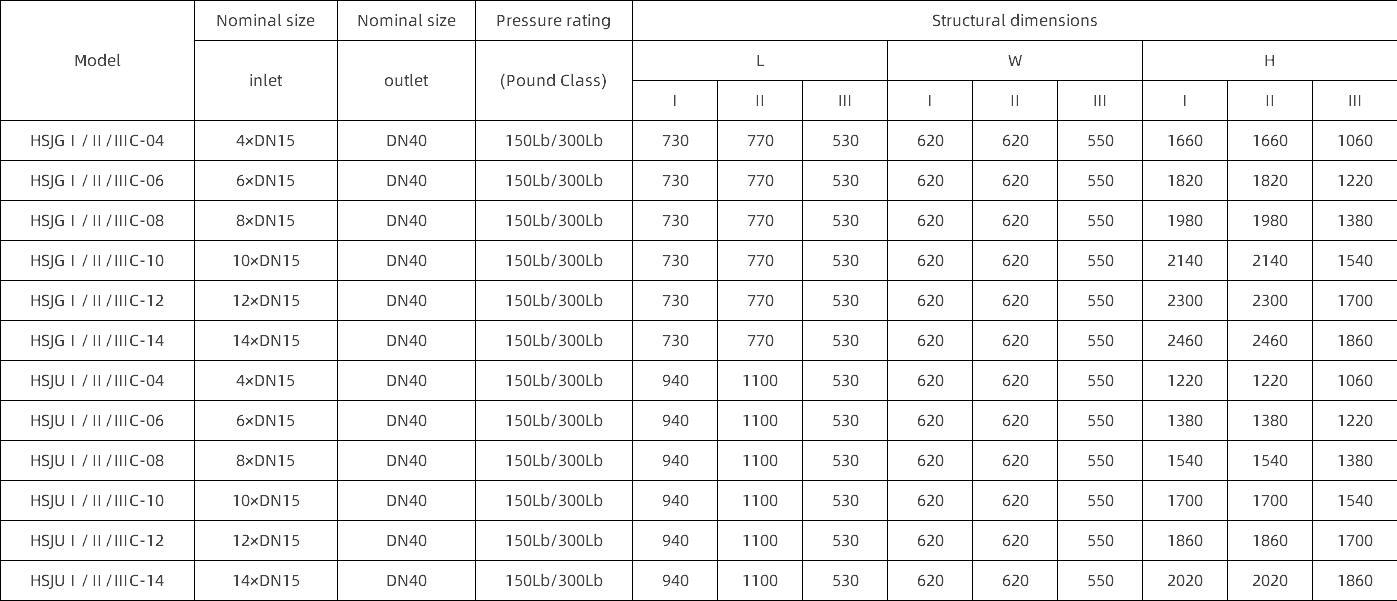

Technical Data Sheet:
